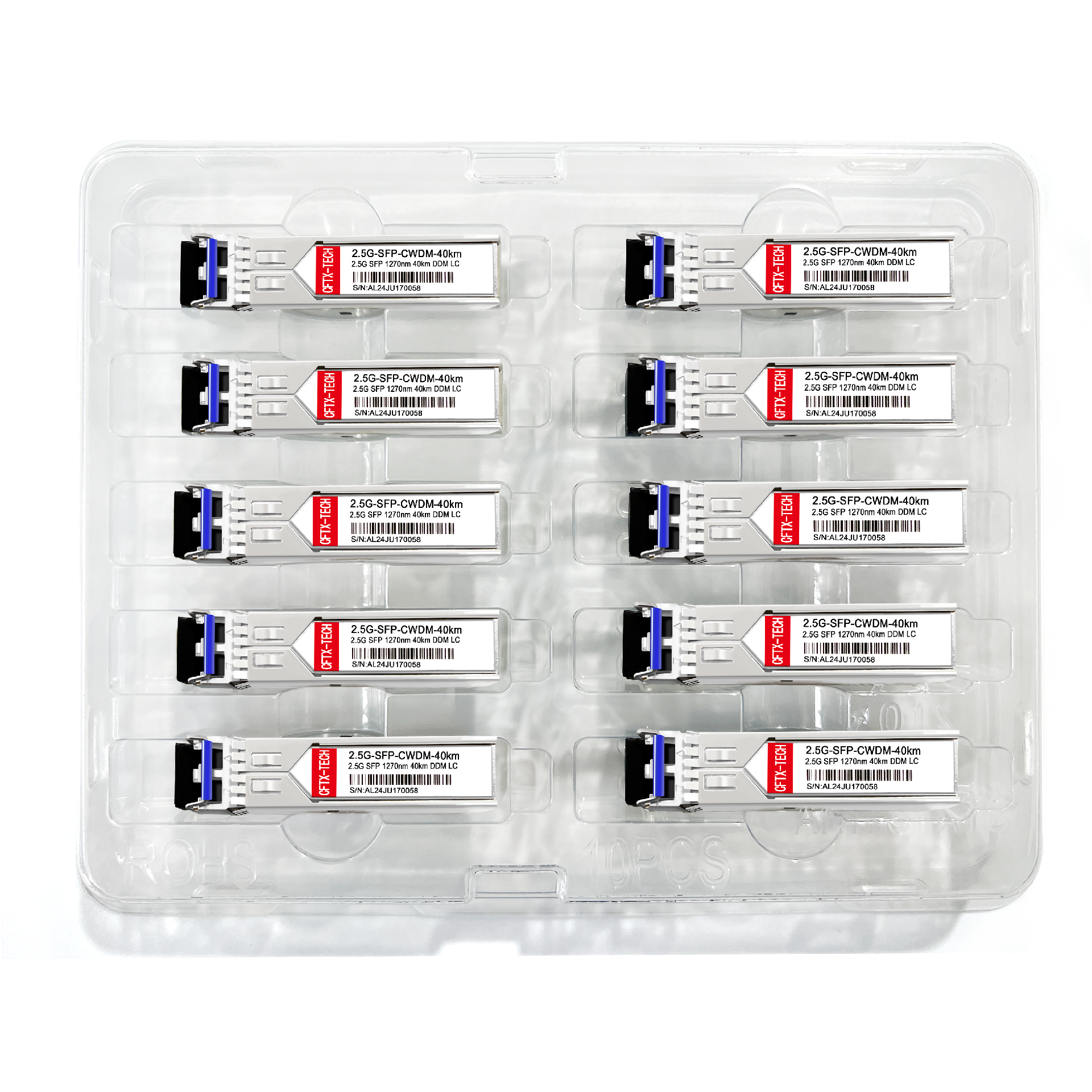

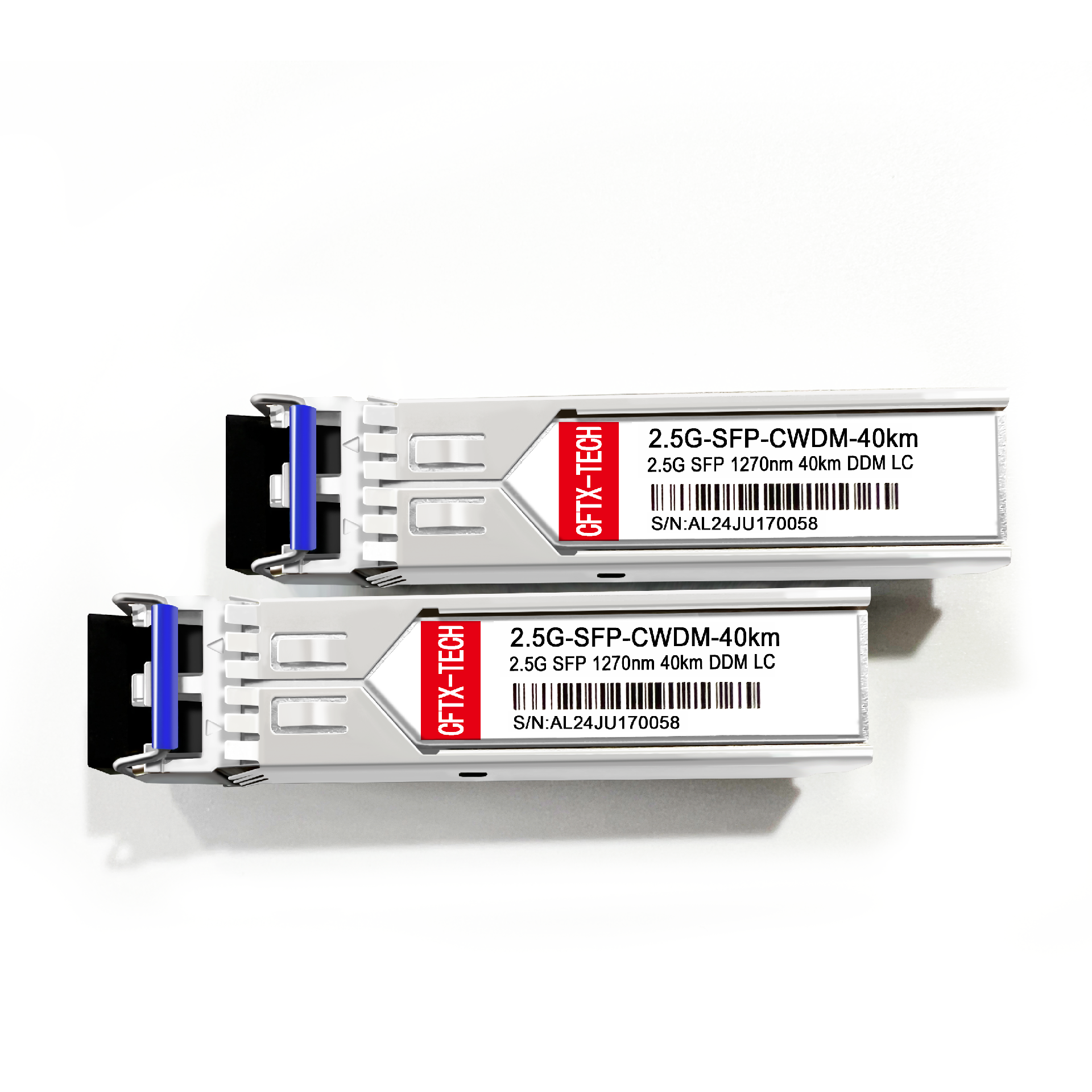

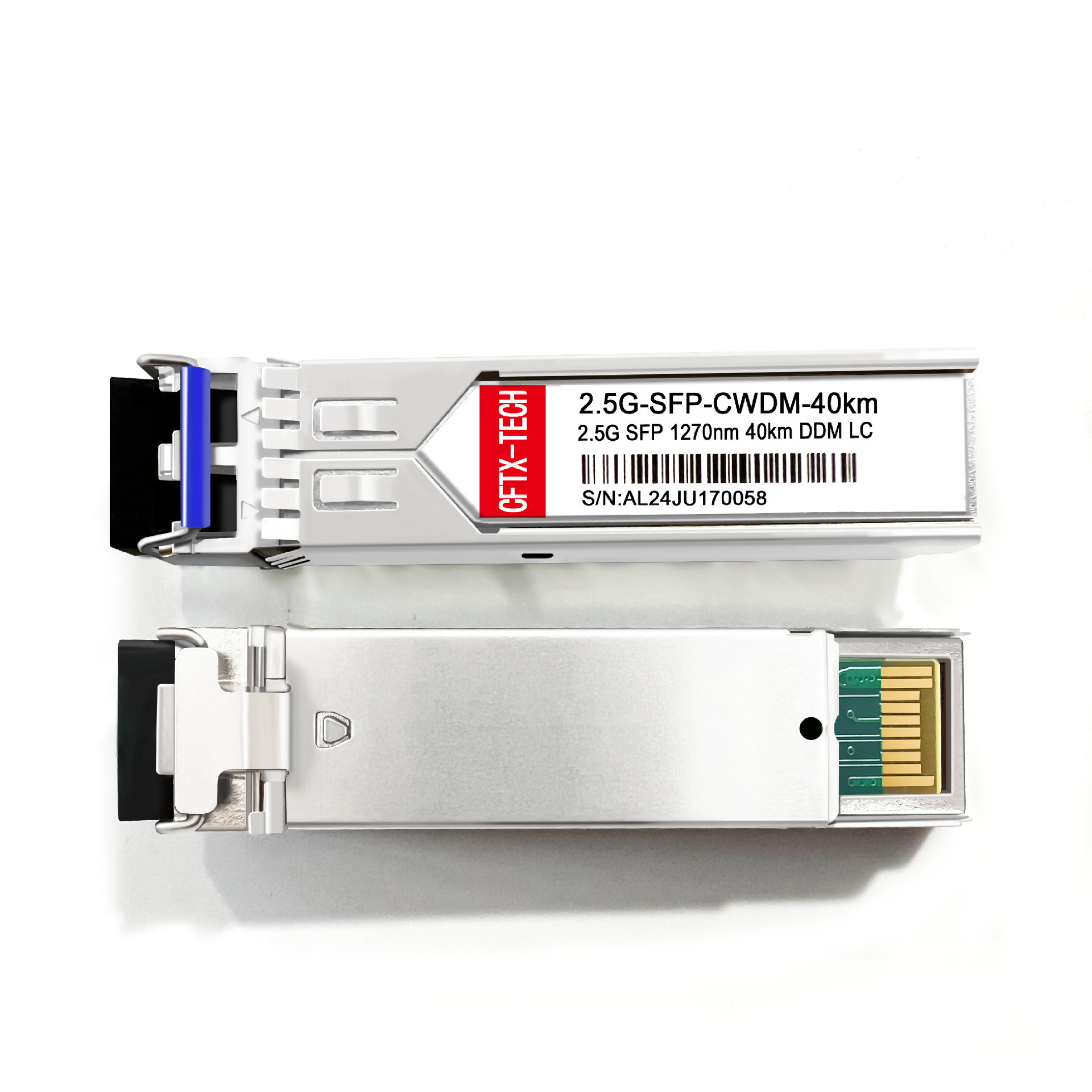

2.5G-SFP-CWDM-1270nm-40km

2.67Gb/s data transmission speed, using DFB laser transmitter and PIN photoelectric detector, 9/125 μ m single-mode fiber transmission up to 40km, hot-swappable SFP interface, LC/UPC pluggable optical interface, low power consumption, metal housing for reducing electromagnetic interference, ROSA lead-free standard, single +3.3V power supply, support digital diagnostic monitoring function, SFF-8472 protocol

产品详情
资料下载

Compatible Model Name	SFP-2.5G-CWDM	Vendor Name	CFTX
Form Factor	SFP	Data Rate	2.67GBbps
Wavelength	1270nm~1610nm	Max Transmission Distance	40km
Connector	Duplex-LC	Media	Single mode-SMF
Transmitter power	-5~0dBm	Receiver sensitivity	<-20dBm
DDM/DOM	Yes	Temperature Range	0~70°C（Commercial grade） /-40~85°C（Industrial grade）
Protocols	Fast Ethernet, Gigabit Fibre Channel, mobile communication systems	Laser Type	DFB
Compatible Brands	(Cisco)、Arista 、HUAWEI、ZTE、DLL、Intel、H3C、RuiJie、IBM、HP……
