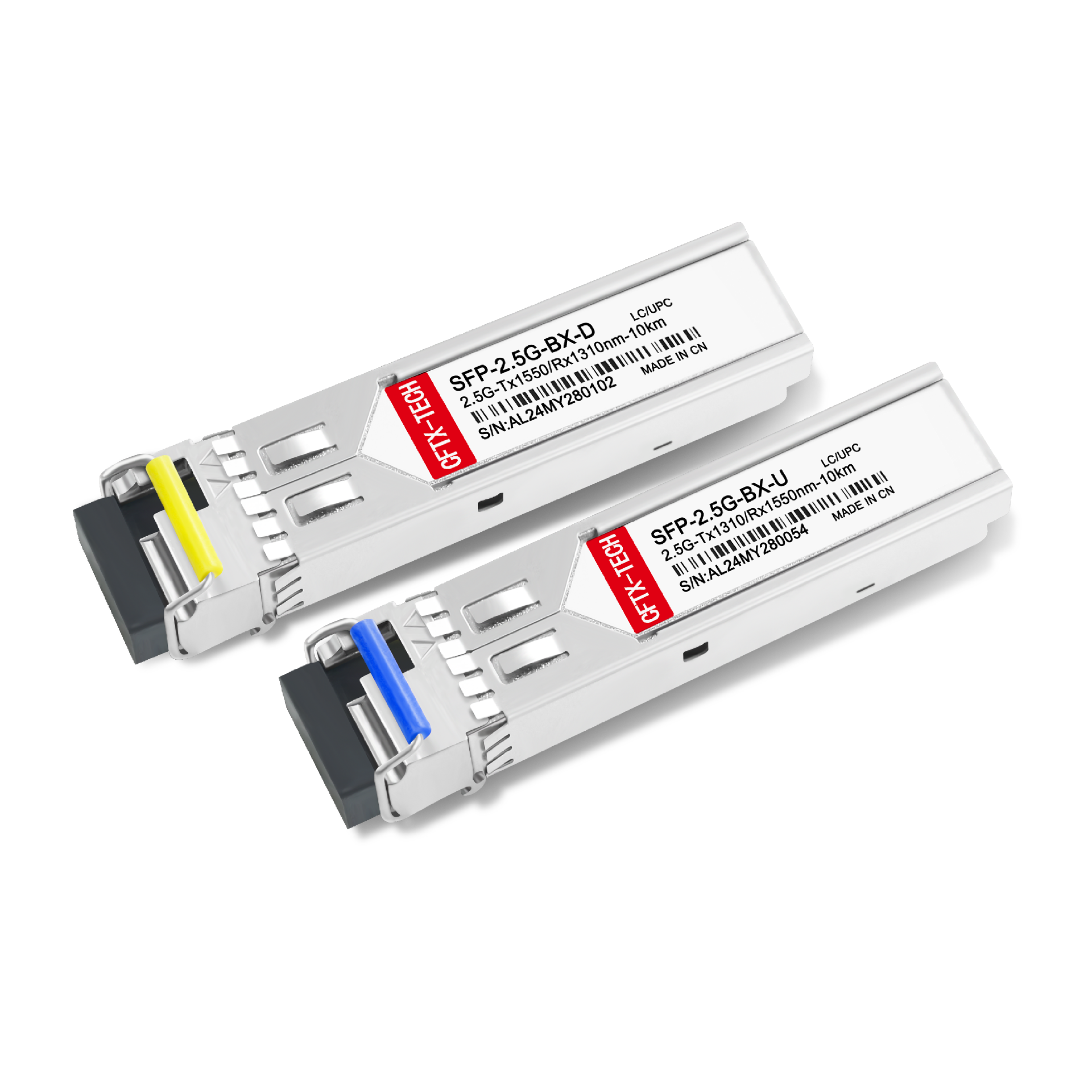

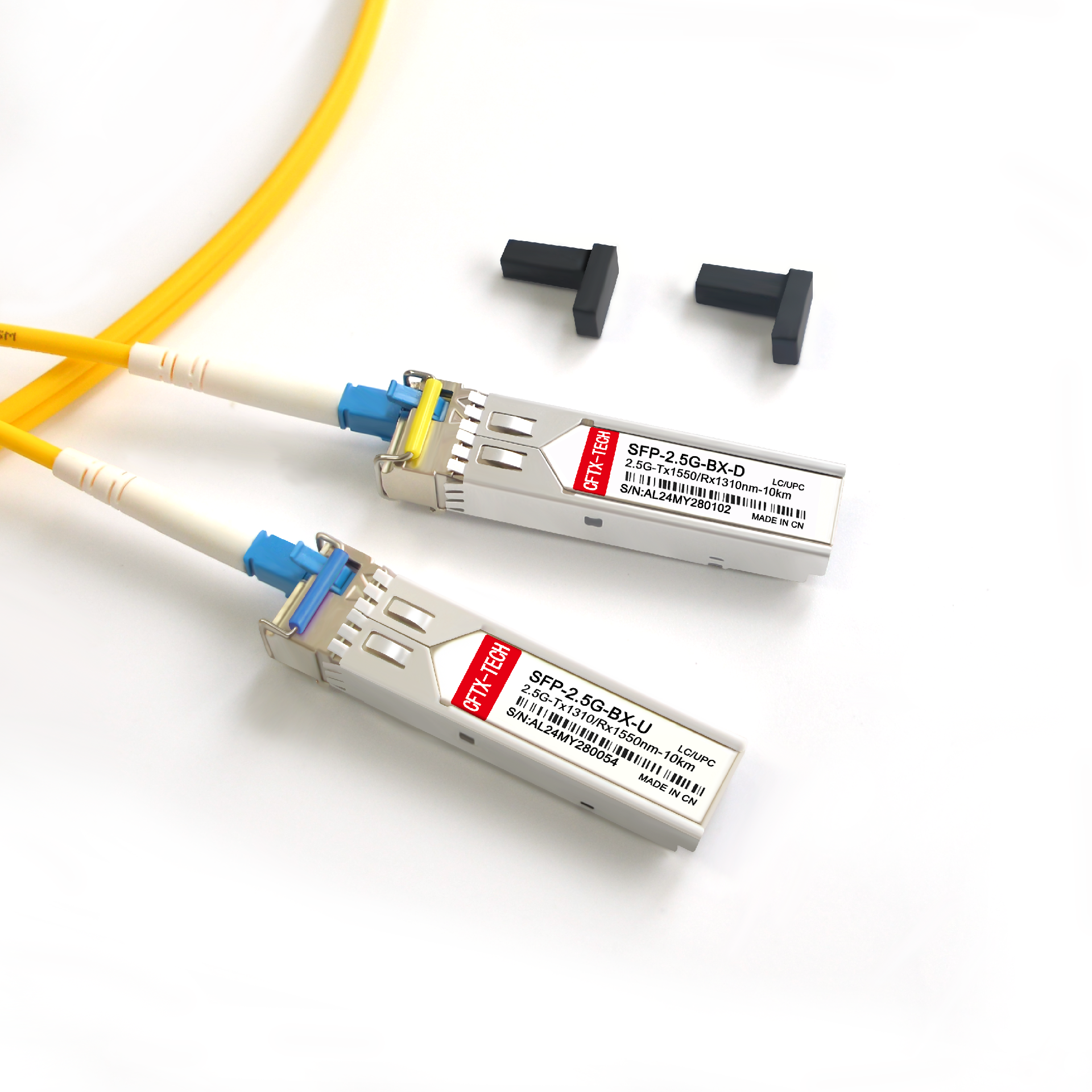

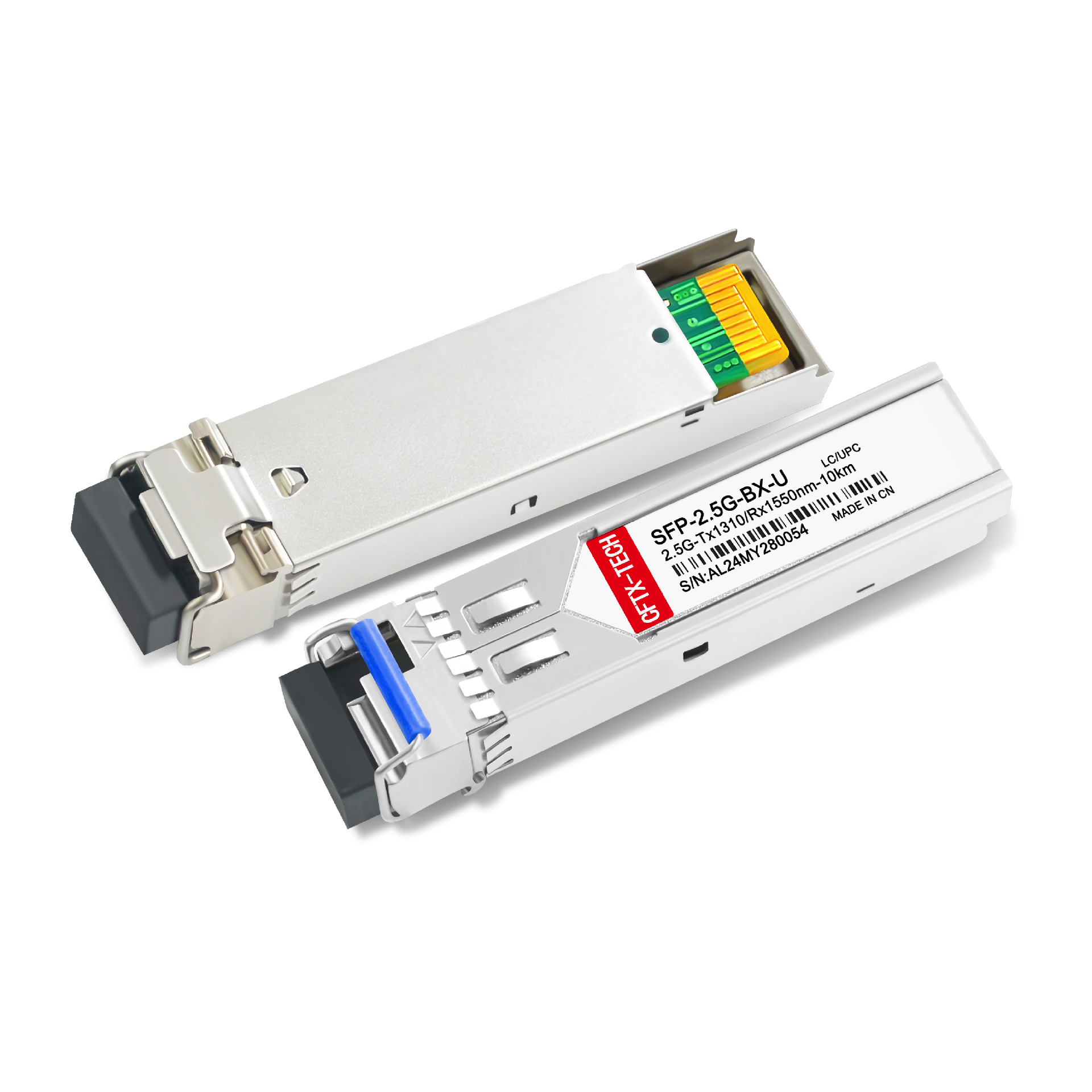

2.5G-SFP-BIDI-1310(1550)nm-10km

2.67Gb/s data transmission speed, using DFB laser transmitter and PIN photoelectric detector, 9/125 μ m single-mode fiber transmission up to 40km, hot-swappable SFP interface, LC/UPC pluggable optical interface, low power consumption, metal housing for reducing electromagnetic interference, ROSA lead-free standard, single +3.3V power supply, support digital diagnostic monitoring function, SFF-8472 protocol

产品详情
资料下载

Compatible Model Name	SFP-2.5G-BD	Vendor Name	CFTX
Form Factor	SFP	Data Rate	2.67GBbps
Wavelength	1270nm~1610nm	Max Transmission Distance	10km
Connector	Simplex-LC	Media	Single mode-SMF
Transmitter power	-5~0dBm	Receiver sensitivity	<-24dBm
DDM/DOM	Yes	Temperature Range	0~70°C（Commercial grade） /-40~85°C（Industrial grade）
Protocols	Fast Ethernet, Gigabit Fibre Channel, MSA	Laser Type	DFB
Compatible Brands	(Cisco)、Arista 、HUAWEI、ZTE、DLL、Intel、H3C、RuiJie、IBM、HP……
