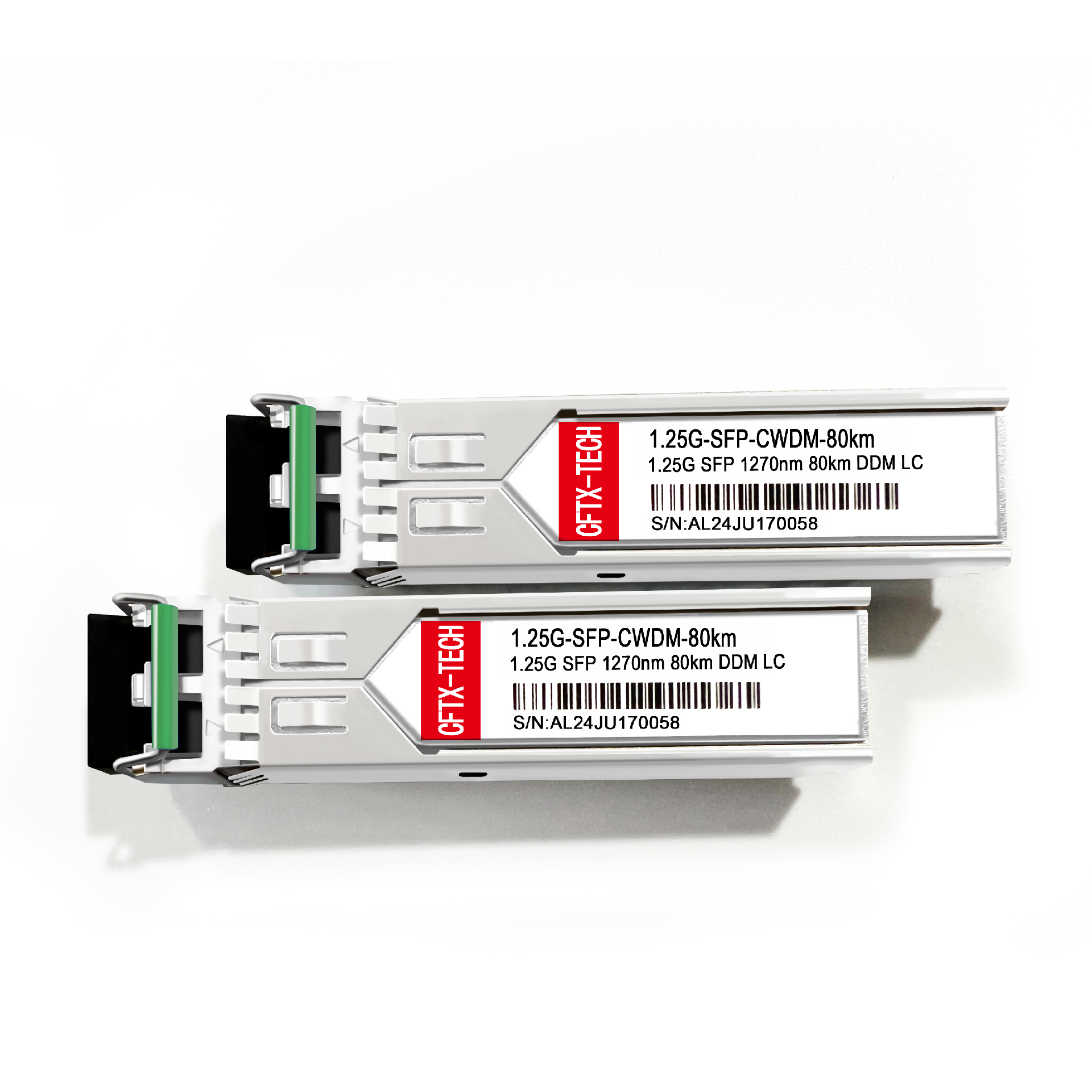

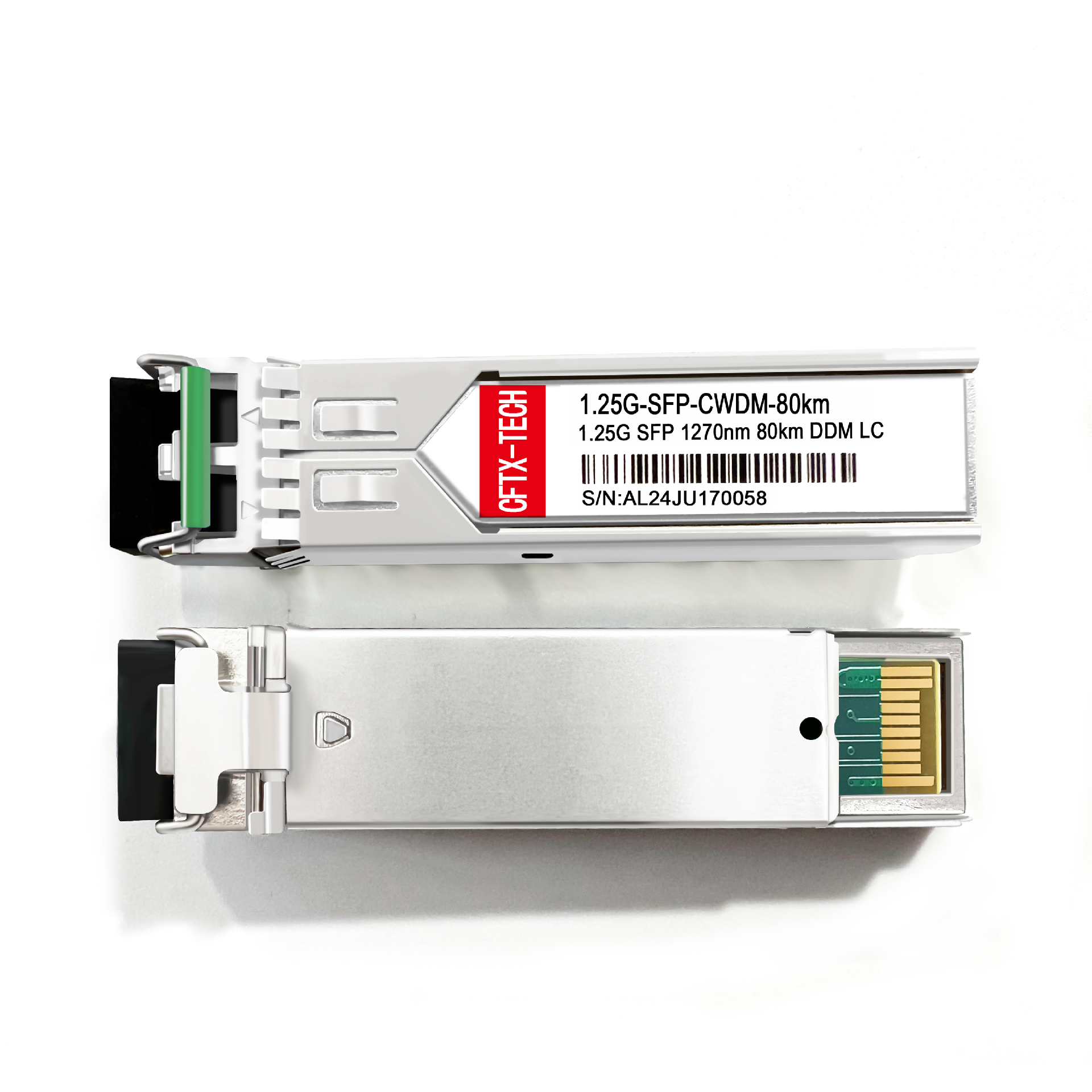

1.25G-SFP-CWDM-1270nm-80km

1.25Gb/s data transmission speed, DFB laser transmitter and PIN photoelectric detector, 9/125 μ m single-mode fiber transmission up to 80km, hot-swappable SFP interface, LC/UPC pluggable optical interface, low power consumption, metal housing for reducing electromagnetic interference, ROSA lead-free standard, single +3.3V power supply, support digital diagnostic monitoring function, SFF-8472 protocol
Compatible Model Name     GLC-BX80-UA-IVendor NameCFTX
Form FactorSFPData Rate1000Mbps
 Wavelength1270nm~1610nmMax Transmission Distance80km
ConnectorDuplex-LCMediaSingle mode-SMF
Transmitter power0~-+5dBmReceiver sensitivity<-24dBm
DDM/DOM YesTemperature Range

0~70°C(Commercial grade)

/-40~85°C(Industrial grade)

 ProtocolsFast Ethernet, Gigabit Fibre Channel,MSALaser Type      DFB
Compatible Brands(Cisco)、Arista 、HUAWEI、ZTE、DLL、Intel、H3C、RuiJie、IBM、HP……
