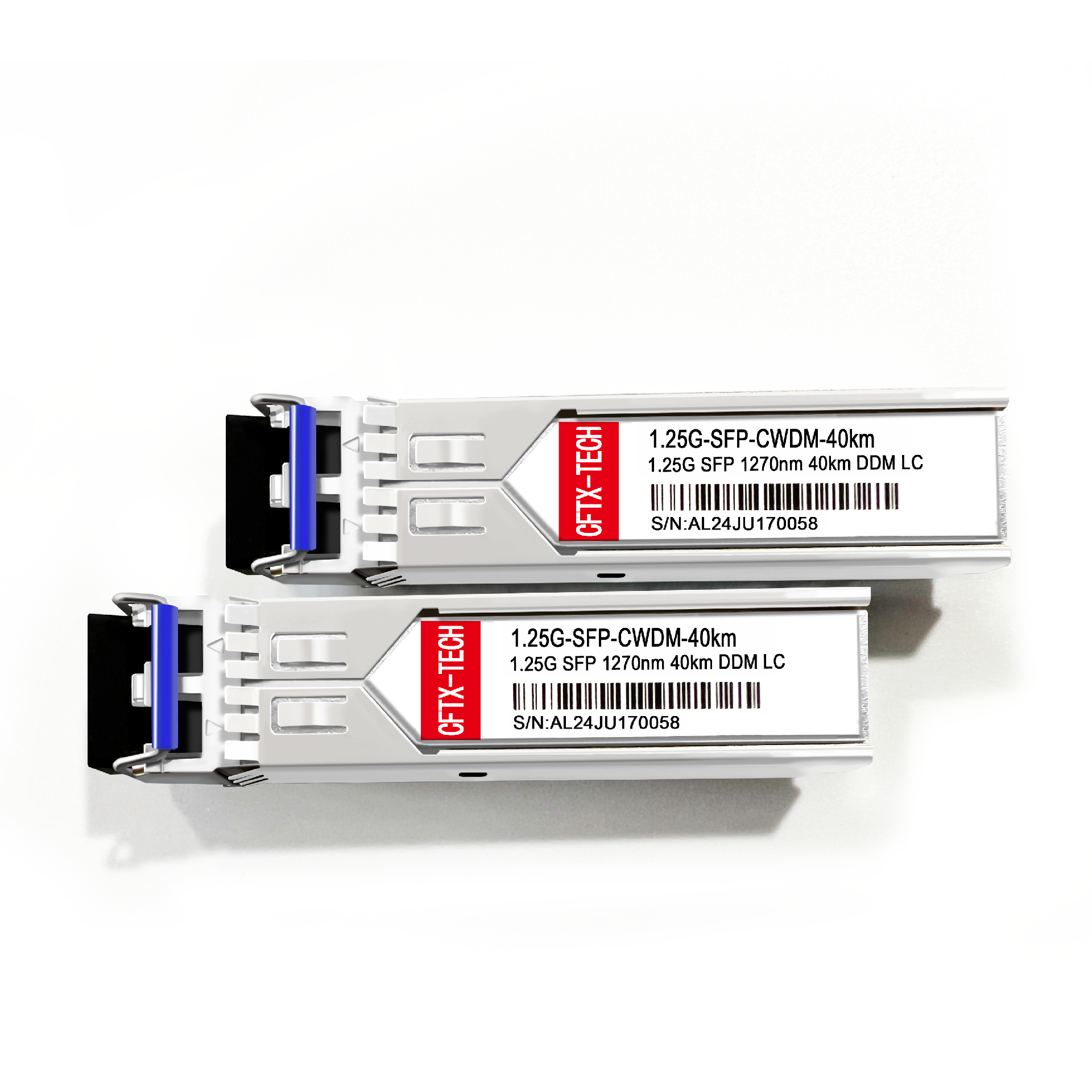

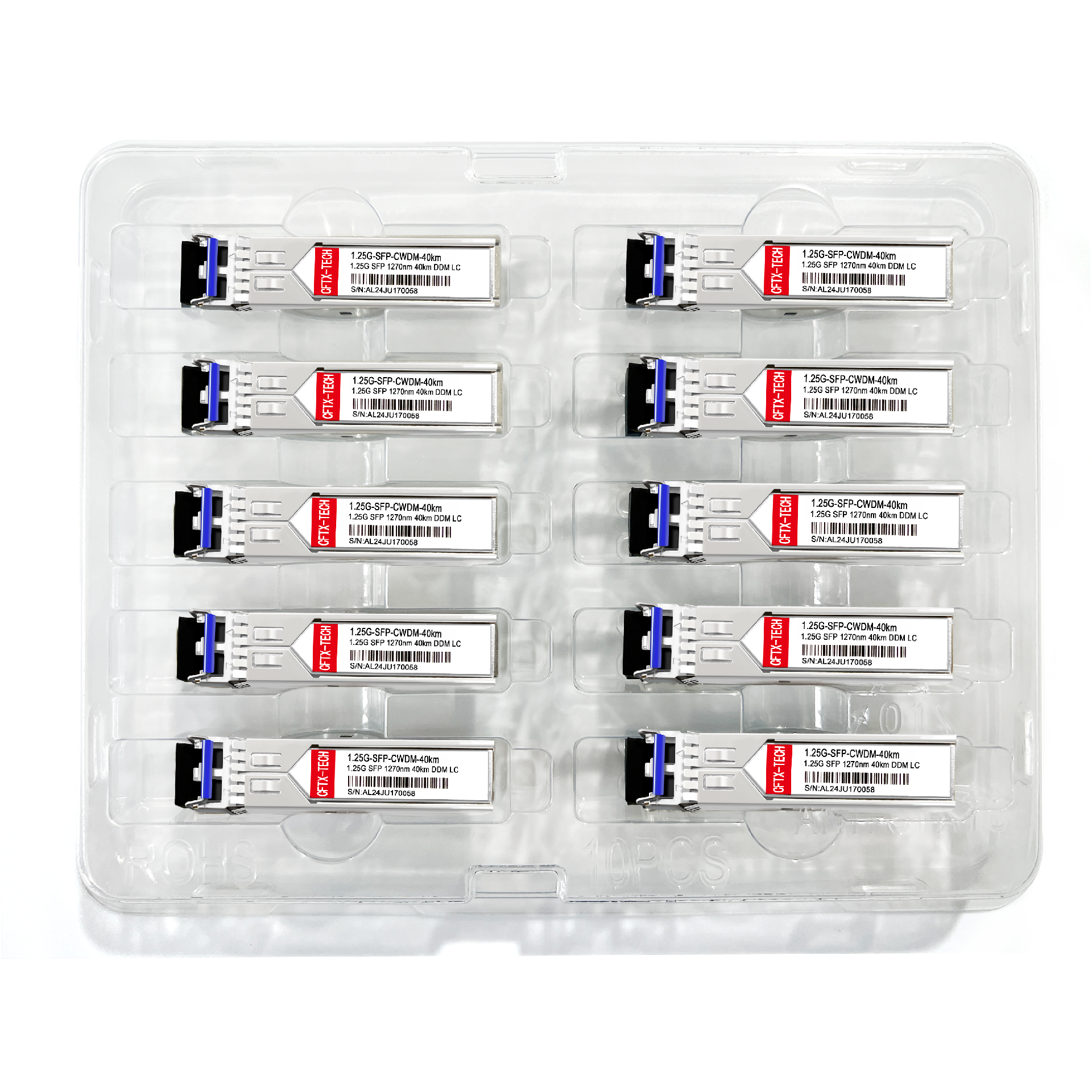

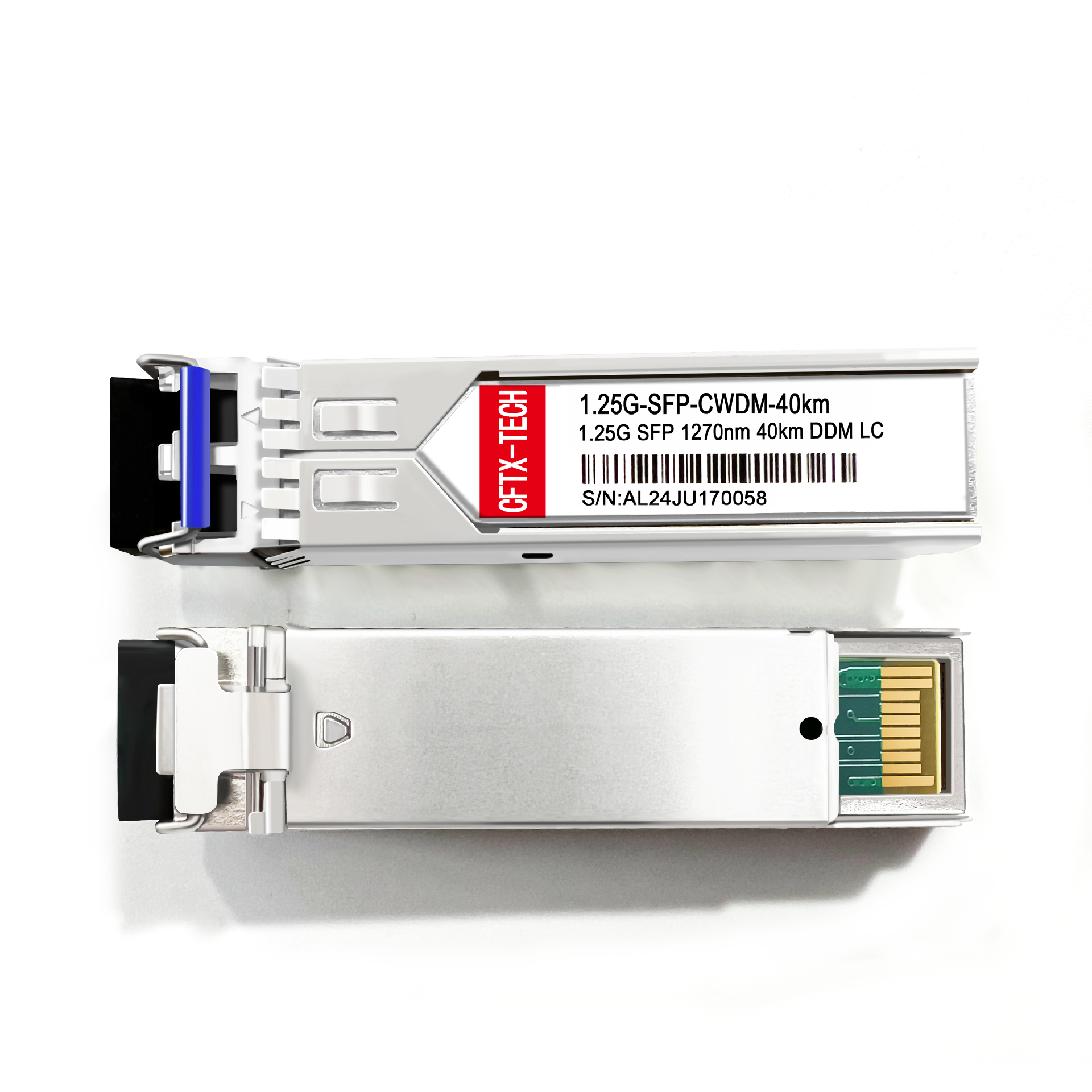

1.25G-SFP-CWDM-1270nm-40km

Compatible Model NameGLC-BX40-UA-IVendor NameCFTXForm FactorSFPData Rate1000MbpsWavelength1270nm~1610nmMax Transmission Distance40kmConnectorDuplex-LCMediaSingle mode-SMFTransmitter power-2~-3dBmReceiver sensitivity<-24dBmDDM/DOMYesTemperature Range0~70°C（Commercial grad

产品详情
资料下载

Compatible Model Name	GLC-BX40-UA-I	Vendor Name	CFTX
Form Factor	SFP	Data Rate	1000Mbps
Wavelength	1270nm~1610nm	Max Transmission Distance	40km
Connector	Duplex-LC	Media	Single mode-SMF
Transmitter power	-2~-3dBm	Receiver sensitivity	<-24dBm
DDM/DOM	Yes	Temperature Range	0~70°C（Commercial grade） /-40~85°C（Industrial grade）
Protocols	Etherne, Gigabit Fibre Channel, MSA	Laser Type	DFB
Compatible Brands	(Cisco)、Arista 、HUAWEI、ZTE、DLL、Intel、H3C、RuiJie、IBM、HP……
